Description

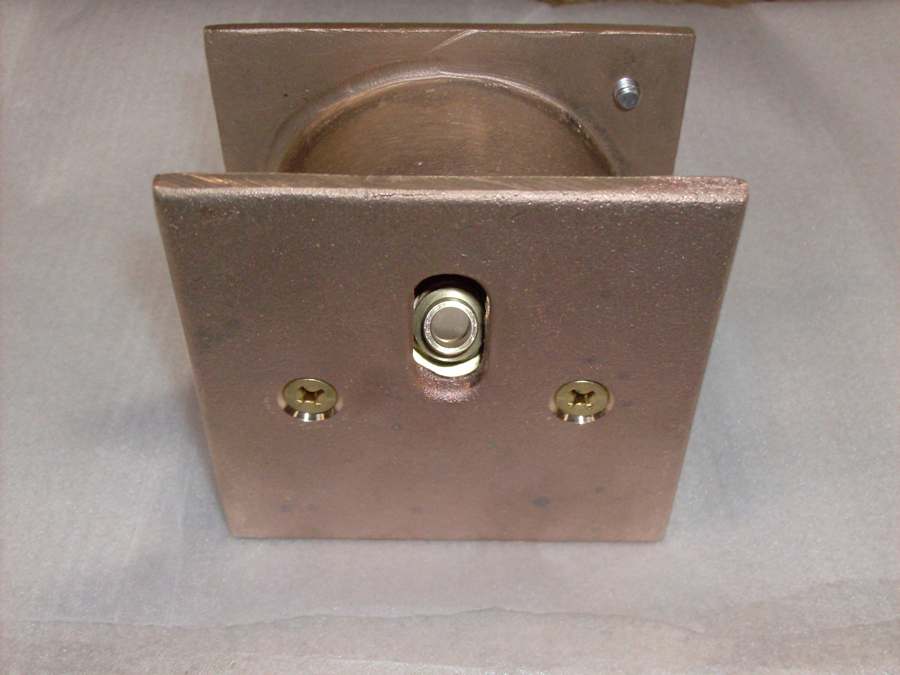

The Deck / Wall Jet is designed to be cast in a deck or
wall of a pool or fountain. Trajectory of the nozzle is
orientated 45°from the horizontal plane to which it is
incased. With a brass ball swivel 5° of adjustability is
possible from 45° preset to maximize the feet of head
or linear through.
Part
Numbers
*
DJ-125 *WJ-125
*
DJ-187 *WJ-187
*
DJ-250 *WJ250
*
DJ-375 *WJ-375
Cut Sheet
*
PDF Version
|
Specification
*
Finish: Shall be natural bronze, and natural brass.
*
Jet: Shall be a 3/8" NPT brass precision nozzle
(interchangeable).
*
Adjustability: Ball and socket construction swivel
with brass locking nut, allows for 5° of adjustability from the 45° angle.
*
Inlet: 3/8" FNPT (3/8" MNPT X 1/2" slip PVC adaptor,
provided).
*
Outlet: 3/8" FNPT.
*
Drain: 3/8" FNPT(3/8" MNPT X 1/2" Slip pvc adaptor,
provided).
|
