ICON_SMALL.tif Fountain Supply Company AVF-8S2B
Anti-Vortex
Plate Assembly
Description
  In pool applications, it is often desirable to place an anti
-vortex plate assembly over a sump in the floor of the pool
to avoid water vortexing as it is drawn into the suction line.

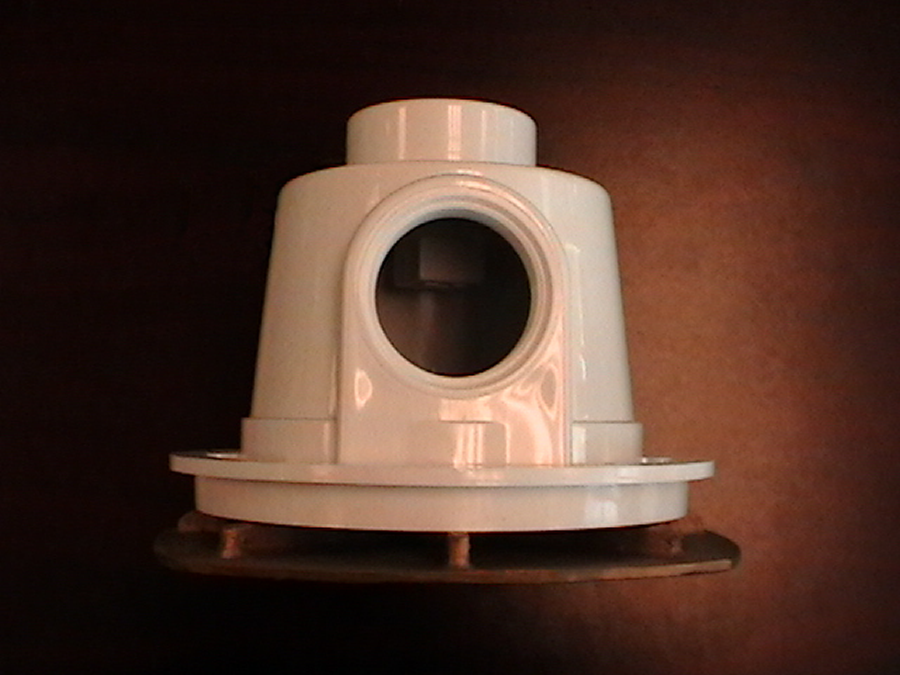

The assembly consists of cast bronze anti-vortex plate and
cycolac sump.

Part Number
* AVF-8S2B
Cut Sheet
* PDF Version
Specification

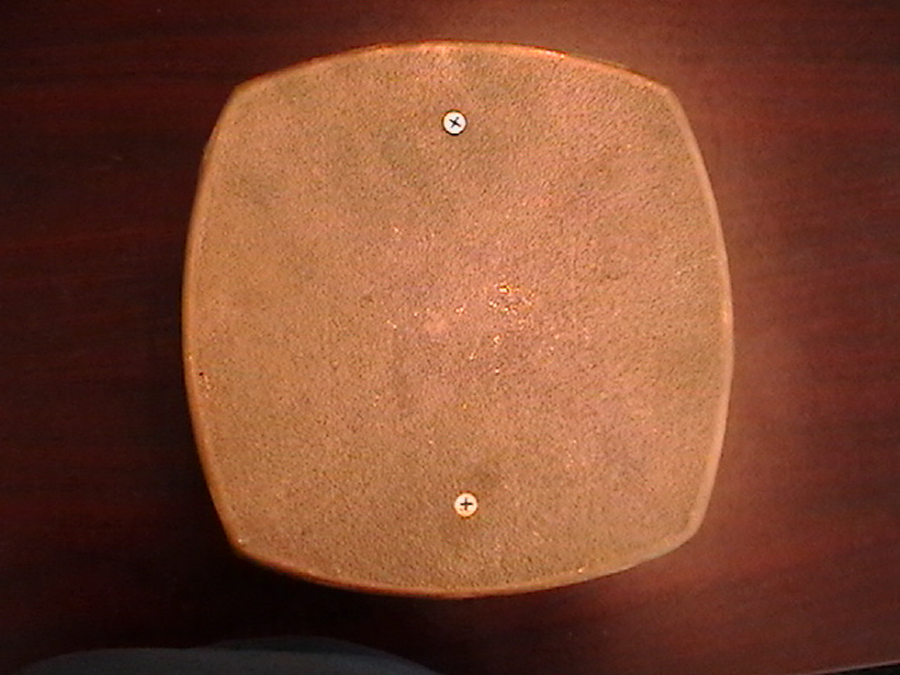

* Anti-Vortex Plate: Shall be cast bronze construction 8" in diameter. Natural finish.

* Sump:Shall be white cycolac plastic.

* Fasteners: Shall be stainless steel or silicone bronze.
   Note: 2" NPT pipe plug included.

* Max GPM: 100.

* Finish: Anti-vortex plate available chrome plated at additional charge
-Add "CP" suffix.
